Battery-powered for a fossil-free mine
- Fossil-free environmental choice
- Performance independent of operating height
- High availability
- Unique ergonomics
- Smart investment
Features | SBU 8000E
A good deal to be environmentally smart

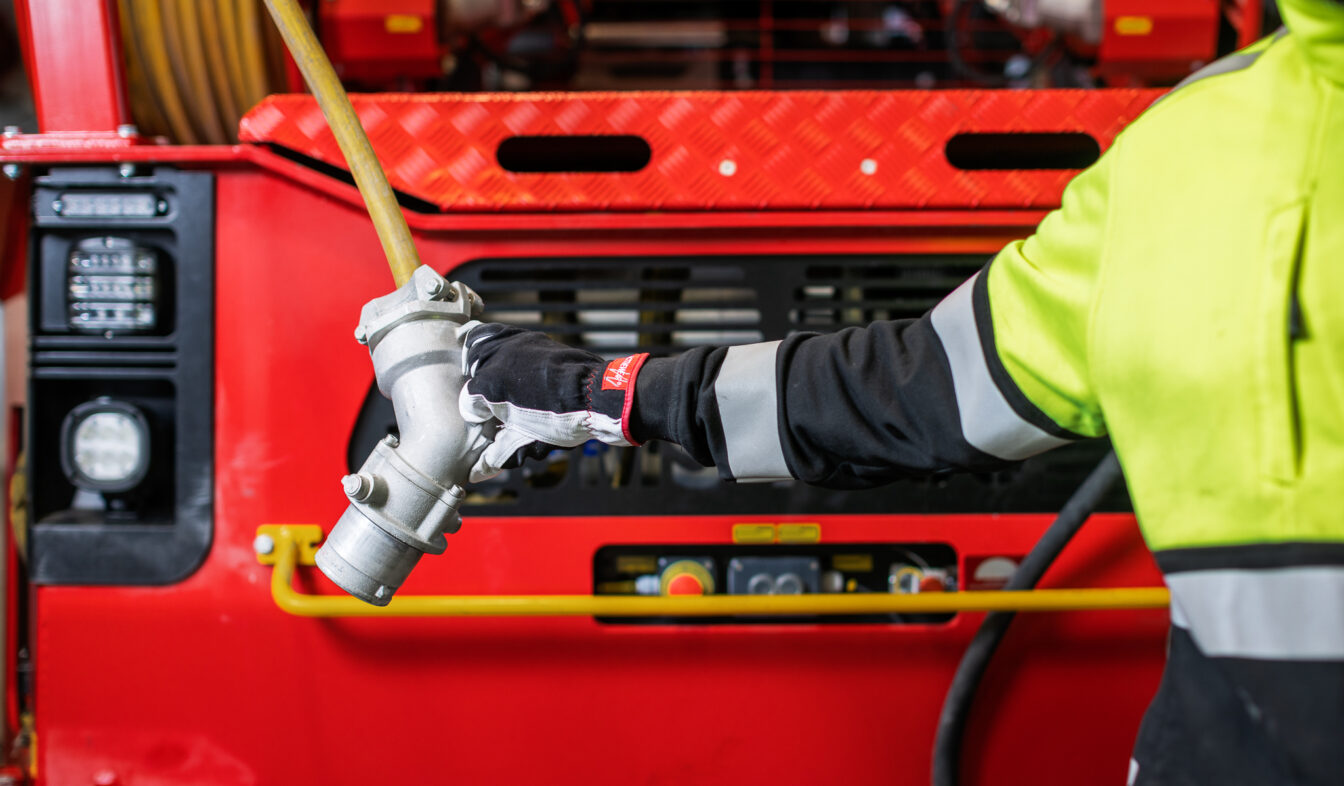

Thanks to battery operation, the SBU 8000E is completely emission-free, which both contributes to a fossil-free mine and saves large costs for mine ventilation. As the battery is charged automatically when scaling, you never have to waste time on interruptions, but can fully focus on profitable productivity.
Safe and ergonomic
With the safety and well-being of the scaler operator in mind, the SBU 8000E has been further developed to create a driver environment that is both safe and ergonomic.
Efficiency you recognize
The battery operation of the machine has the same reliable power as the diesel scaler. It has a propulsion system that is extremely energy efficient. The utility rate is optimized and the new on-board control system has been developed for tough mining environments.

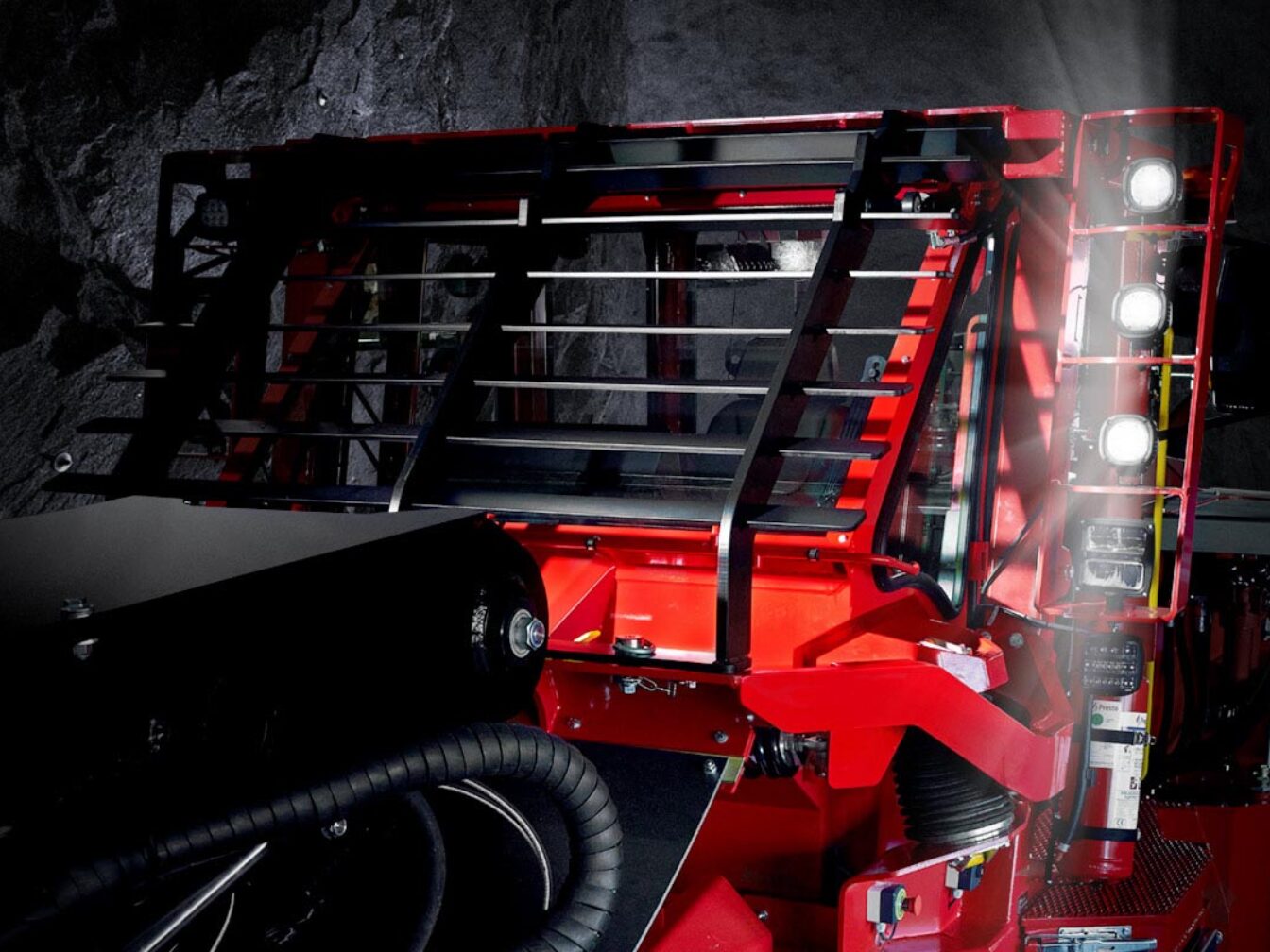

Feel good ergonomics
The working environment offered by a SBU 8000E lacks competition in the market with it’s air-sprung operator’s seat, heating system with A/C and a tiltable, floating cabin that minimizes low-frequency vibration. In other words, perfect conditions for working days that combine productivity and a pleasant experience.
Increased efficiency and reliability
Best overall economy

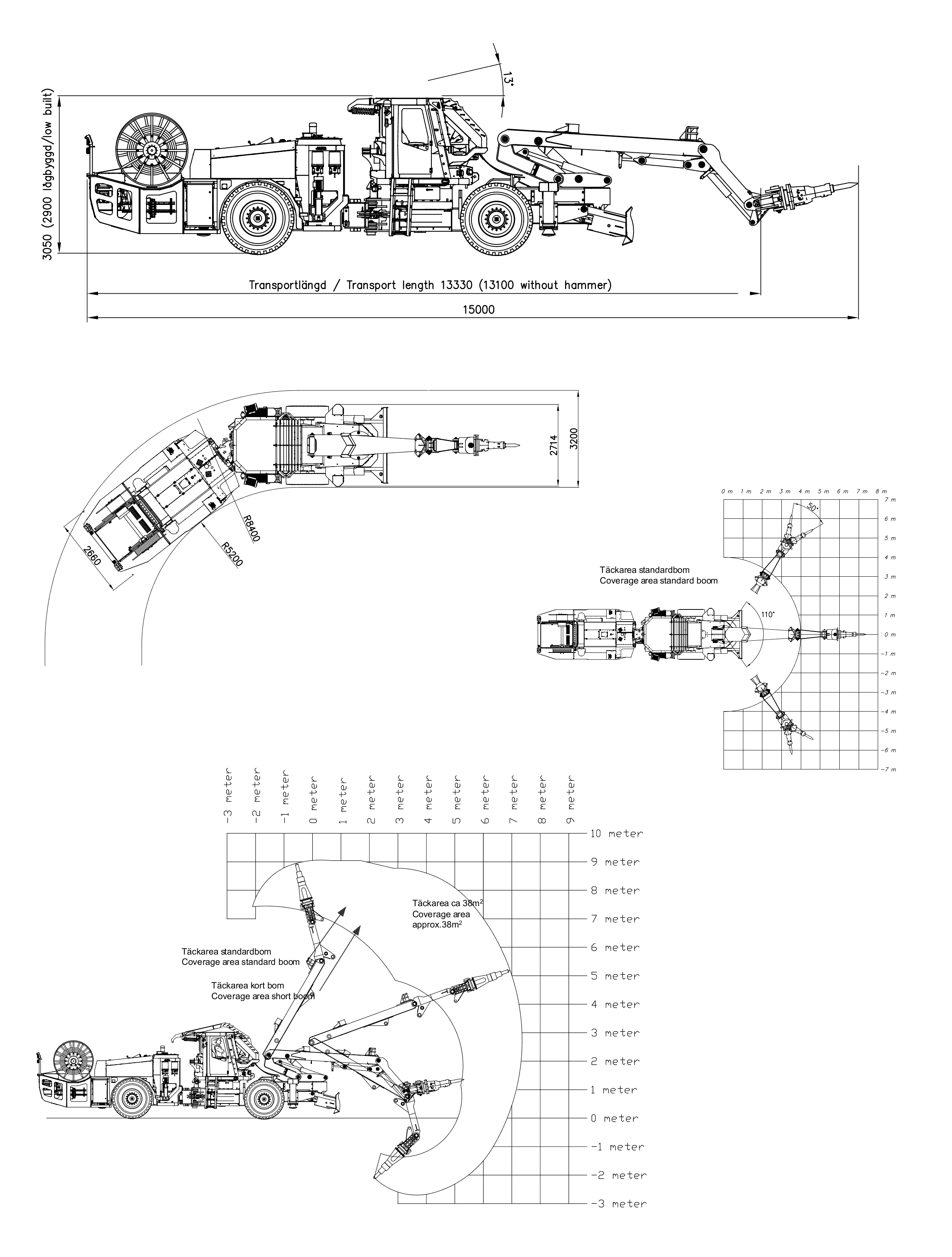

Specifications | SBU 8000E
|Ground clearance||370 mm|
|Length in transport mode||15,000 mm|
|Turning radius||5,200 mm|
|Total weight||31,000 kg|
|Maximum speed, horizontal||20 km/h|
|Maximum speed, 1:7 incline||6 km/h|
|Maximum speed, 1:10 incline||16 km/h|
|Maximum incline (up or down)||1:4|
|Dozer blade||Hydraulically operated at the front|
|Stabilisation||Hydraulic vertical support legs at front and rear|
Download full specifications as a PDF
