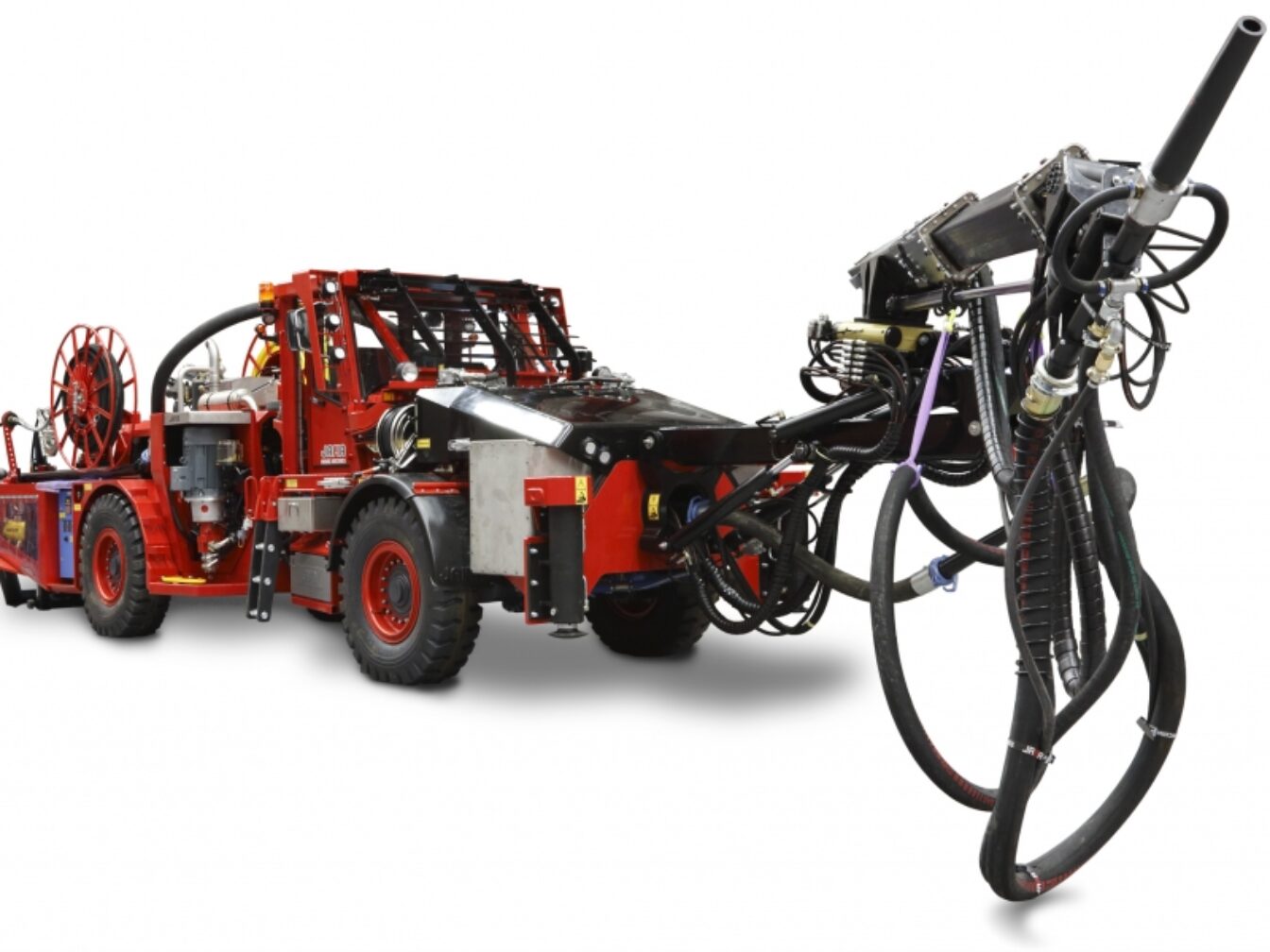

The trusted concrete sprayer
- SBU 8000 chassis
- Robust and strong
- Telescopic function
- Semi-automatic concrete spraying
- High level of safety
Features | CSU 8000B

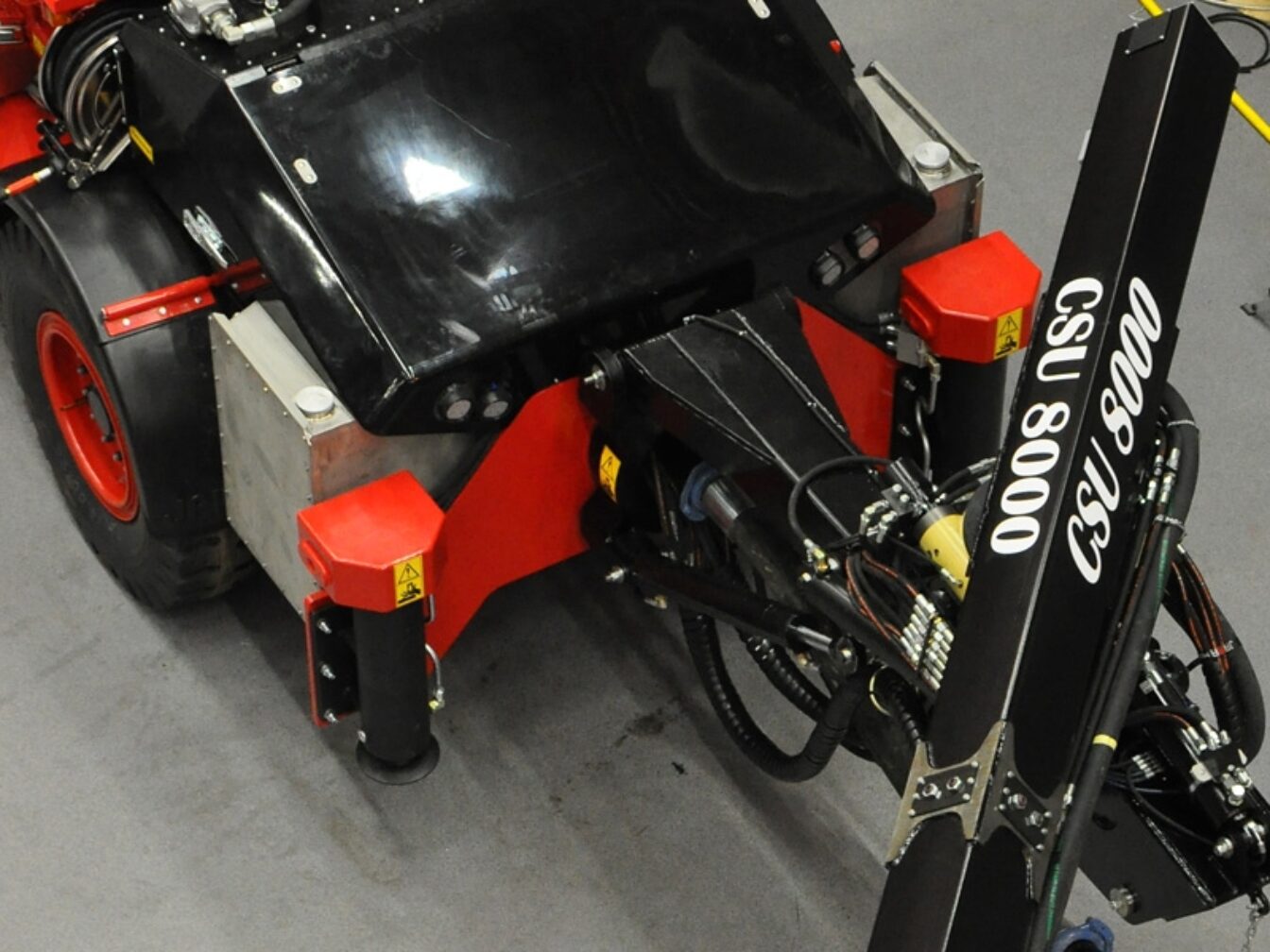

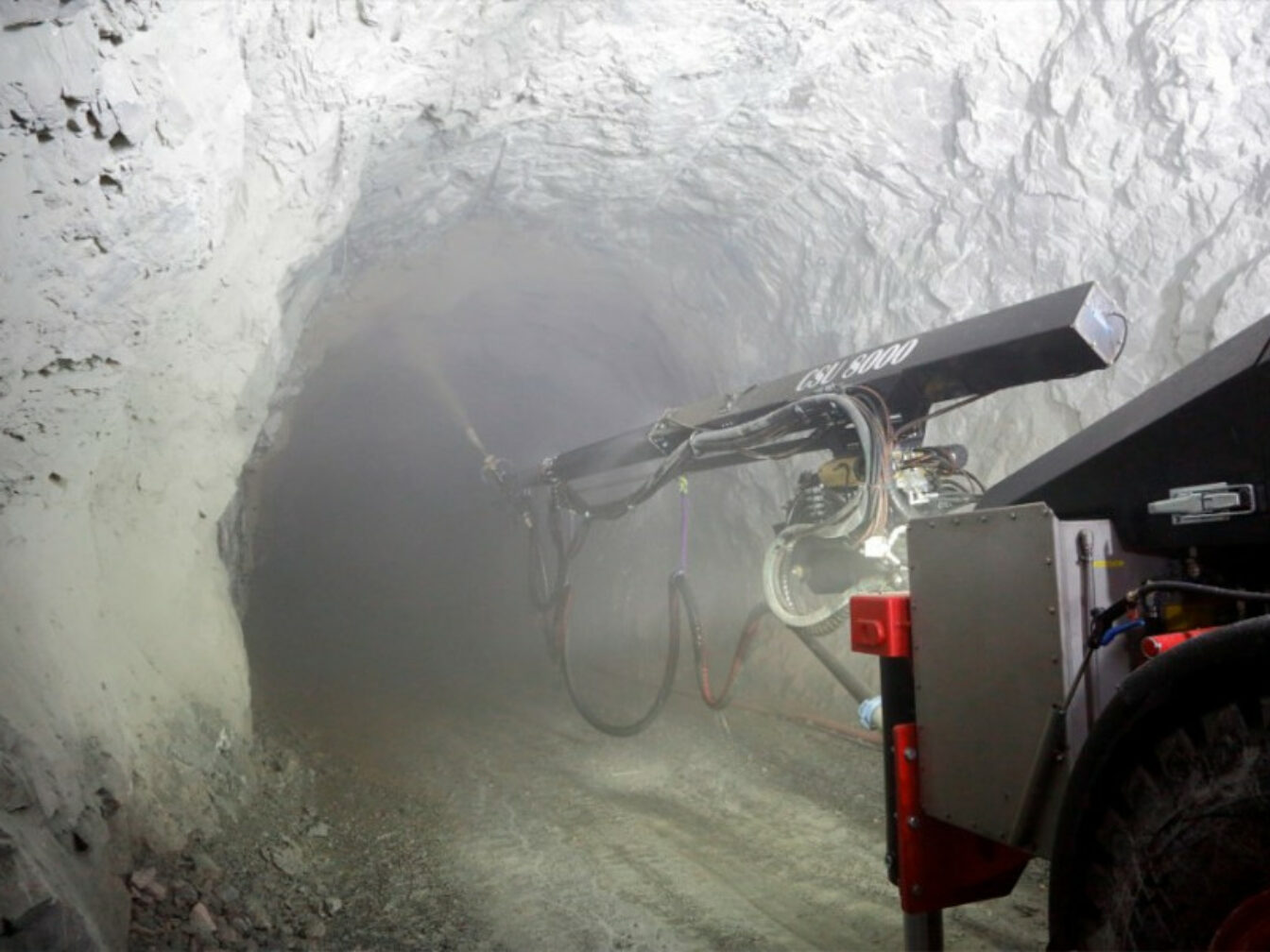

The CSU 8000 has a boom system where the motion range is fully adapted for rock reinforcement and the machine is able to spray a tunnel section of more than five metres without movement.

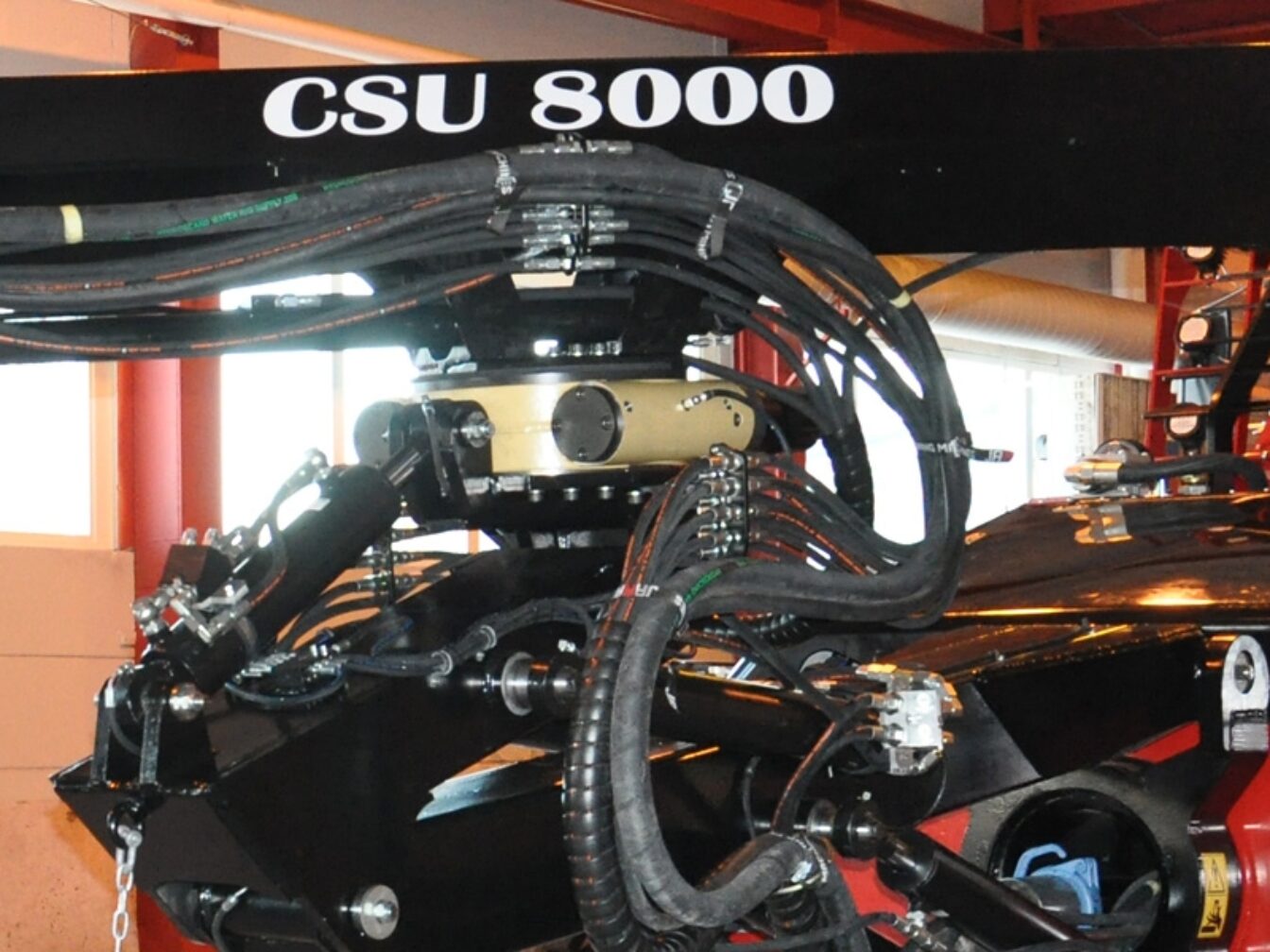

The boom system also has automatic extension with hydraulic cylinders, horizontal and vertical swivel nozzle, with variable oscillation speed.

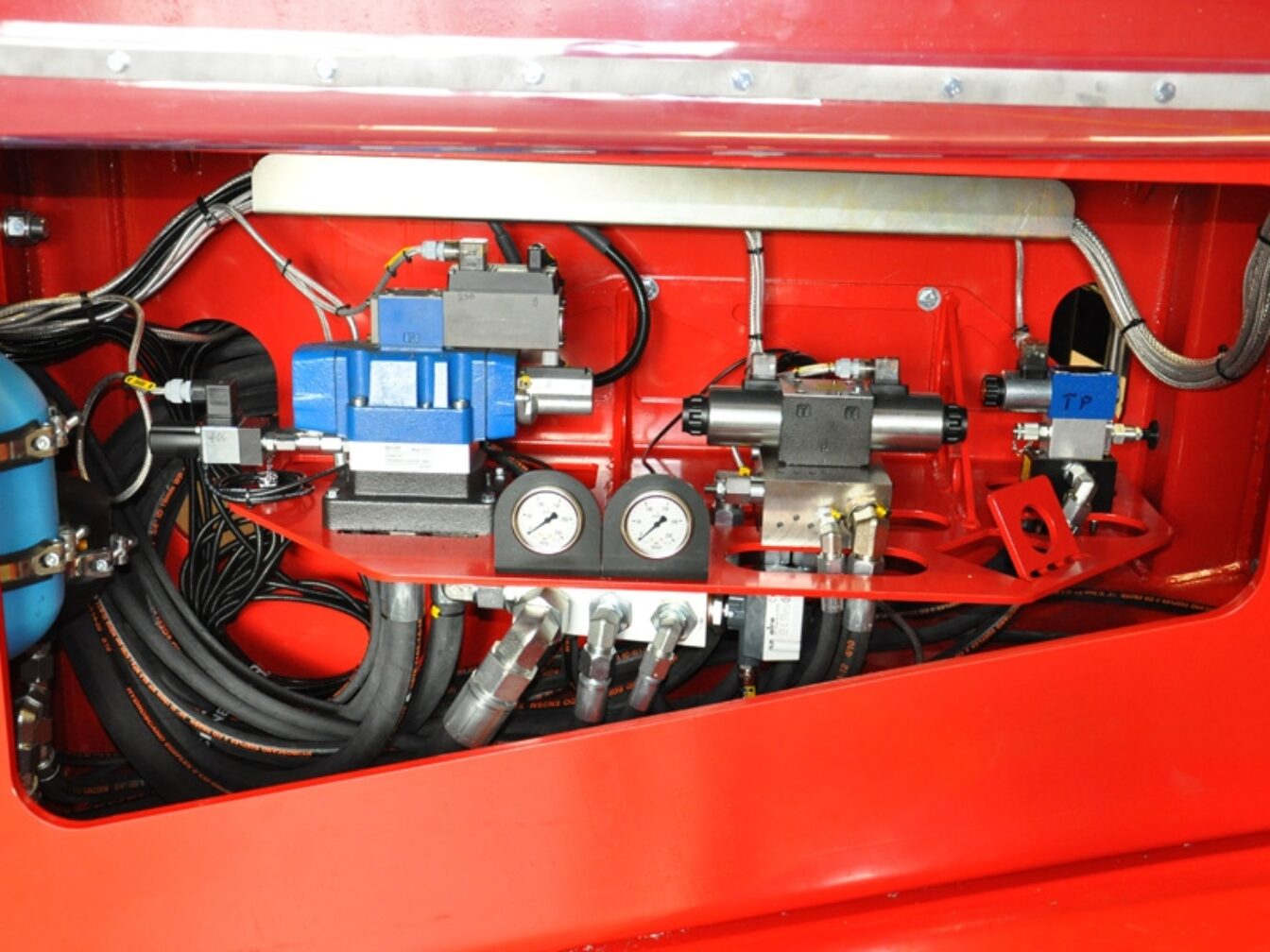

The system is based on load-sensing pumps, with integrated sensors to control pressure, level values and temperature as well as indication for filter change.
The lighting is well tested together with experts and the colour temperature is customized for dusty environments.
New control system
Specifications | CSU 8000B
|Ground clearance||370 mm|
|Length in transport mode||16,150 mm|
|Turning radius||5,200 mm|
|Total weight||32,000 kg|
|Max speed horizontal||25 km/h|
|Max speed inclination 1:7||9 km/h|
|Max speed inclination 1:10||16 km/h|
|Max inclination fully loaded (up and down)||1:4|
|Maximum spraying height||12 m|
|Spraying length||0.5-1.5 m|
|Spraying height with extension||6 m|
|Boom oscillating||180° with worm gear|
|Boom turn||180° with worm gear|
|Nozzle rotation right/left||360° with hydraulic actuator|
|Nozzle rotation up/down||180° with hydraulic actuator|
